OPENKEY RXT-100 - Installation Guide
Technical Parameters
Tables can't be imported directly. Please insert an image of your table which can be foundhere.
Power supply
4 AA akline batteries
Static current
200uA
Dynamic current
200mA
Working temperature
-20 ~ 65℃
Working humidity
15-100% RH
Unlocking distance
5 meters
Low voltage alarm
less than 10% voltage
Access way
Password, BLE, mechanical key
Password capacity
200 groups
APP login password
6-9 digits
Period password (less than one day)
6 digits
Period password (more than one day)
9 digits
Cyclic password
9 digits
Other passwords
8 digits
For RXT Locks using OpenKey BLE Modules:
****You must program each module, one by one as you install them. If you install all the modules prior to programming, the Installer Pro application will not be able to identify which module you are trying to program.****
Tools
- OpenKey Installer Pro App
- Site credentials
- Phillips screwdriver
1. Remove the battery cover with a Phillips screwdriver.
2. Download Installer Pro App, Launch the OpenKey Installer Pro App and verify that Bluetooth is on and permissions granted in the app.
*The software (iOS version) can be downloaded from the Apple App Store. Apple is required to install the RXT 100 locks.
3. Log in with the property credentials provided by OpenKey.

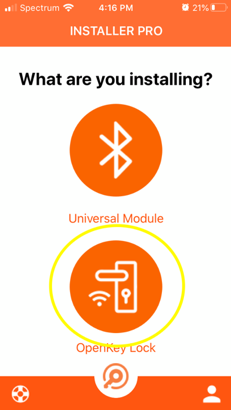

4. Tap the OpenKey lock.

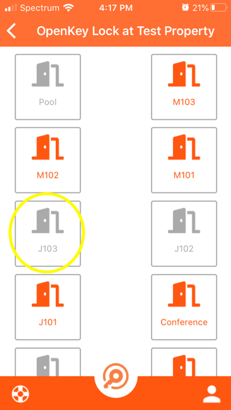

5. Tap the lock you wish to install.
*If the room list doesn't match your property, contact OpenKey at support@openkey.coor 877-800-2008.

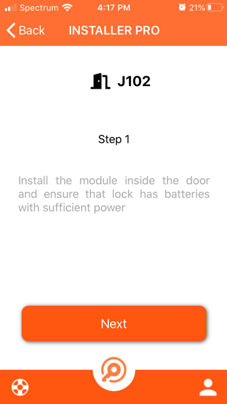

6. Follow the instructions on the next two screens.
7. **IMPORTANT STEP** Press and hold the button on the lock until you hear a beep. Immediately go to Step 8.

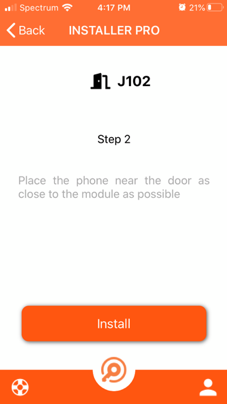

8. Tap Install

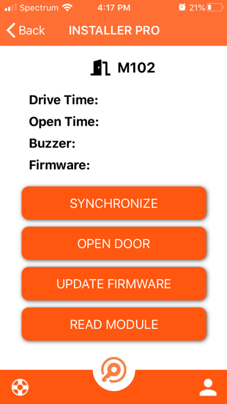

9. Test the lock by tapping the OPEN DOOR button.
10. Once paired, replace the battery cover and tighten the screw.
This completes the programming of this module. Attach the face plate, Click “INSTALL ANOTHER,” and move to the next lock.
